Ford Fuel Injection

302 / 5.0L Car Computer Pin outs

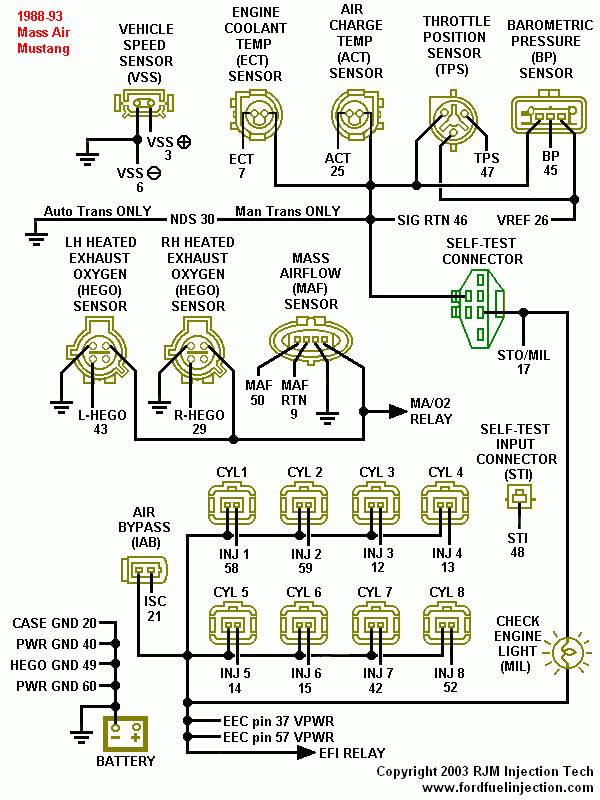

Year:	86-88	88-93	94-95	86-91	90-91	86-88	91-93	86-92	88-92
Vehicle:	Mustang	Mustang	Mustang	Crown Vic	Crown Vic	T-Bird	T-Bird	Mark VII	Mark VII
Type:	Speed Density	Mass Air	Mass Air	Speed Density	Mass Air	Speed Density	Mass Air	Speed Density	Mass Air
1	K A PWR	K A PWR	K A PWR	K A PWR	K A PWR	K A PWR	K A PWR	K A PWR	K A PWR
2			BOO	BOO		BOO			BOO
3		VSS (+)	VSS (+)	VSS (+)	VSS (+)	VSS (+)	VSS (+)		VSS (+)
4	IDM	IDM	IDM	IDM	IDM	IDM	IDM	IDM	IDM
5			TSS		BOO
6		VSS (-)	VSS (-)	VSS (-)	VSS (-)	VSS (-)	VSS (-)		VSS (-)
7	ECT	ECT	ECT	ECT	ECT	ECT	ECT	ECT	ECT
8			FPM		Data Bus (-)		FPM
9		MAF RTN	MAF RTN		MAF RTN		MAF RTN		MAF RTN
10	A/C on	A/C on	A/C on	A/C on	A/C on	A/C on	A/C on	A/C on	A/C on
11	TAD		CANP	TAD		TAD	TAD	TAD	TAD
12	INJ 3	INJ 3	INJ 6	INJ 3	INJ 3	INJ 3	INJ 6	INJ 3	INJ 3
13	INJ 4	INJ 4	INJ 7	INJ 4	INJ 4	INJ 4	INJ 7	INJ 4	INJ 4
14	INJ 5	INJ 5	INJ 8	INJ 5	INJ 5	INJ 5	INJ 8	INJ 5	INJ 5
15	INJ 6	INJ 6	INJ 5	INJ 6	INJ 6	INJ 6	INJ 5	INJ 6	INJ 6
16	IGN GND	IGN GND	IGN GND	IGN GND	IGN GND	IGN GND	IGN GND	IGN GND	IGN GND
17	STO	STO	STO	STO	STO	STO	STO	STO	STO
18			Data Bus (-)				Data Bus (+)
19		FPM	Data Bus (+)		FPM		Data Bus (-)
20	GND	GND	GND	GND	GND	GND	GND	GND	GND
21	IAB	IAB	IAB	IAB	IAB	IAB	IAB	IAB	IAB
22	FPR	FPR	FPR	FPR	FPR	FPR	FPR	FPR	FPR
25	ACT	ACT	ACT	ACT	ACT	ACT	ACT	ACT	ACT
26	V-REF	V-REF	V-REF	V-REF	V-REF	V-REF	V-REF	V-REF	V-REF
27	EVP	EVP	EVP	EVP	EVP	EVP	EVP	EVP	EVP
29	R HEGO	R HEGO		R HEGO	R HEGO	R HEGO		R HEGO	R HEGO
30	NDS	NDS	MLPS	NDS	NDS	NDS	NDS	NDS	NDS
31	CANP	CANP	TAB	CANP	CANP	CANP	TAB	CANP	CANP
32		TAD	E Fan		TAD
33	EVR	EVR	EVR	EVR	EVR	EVR	EVR	EVR	EVR
34			TAD
35			INJ 4				INJ 4
36	SPOUT	SPOUT	SPOUT	SPOUT	SPOUT	SPOUT	SPOUT	SPOUT	SPOUT
37	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR
38		TAB	EPC		TAB
39			INJ 3				INJ 3
40	GND	GND	GND	GND	GND	GND	GND	GND	GND
41			TCS
42	INJ 7	INJ 7	A/C High PSI off	INJ 7	INJ 7	INJ 7		INJ 7	INJ 7
43	L HEGO	L HEGO	L HEGO	L HEGO	L HEGO	L HEGO	L HEGO	L HEGO	L HEGO
44	R HEGO GND	R HEGO GND	R HEGO	R HEGO GND	Data Bus (-)	R HEGO GND	R HEGO	R HEGO GND	R HEGO GND
45	MAP	BARO		MAP	BARO	MAP		MAP	BARO
46	SIG-RTN	SIG-RTN	SIG-RTN	SIG-RTN	SIG-RTN	SIG-RTN	SIG-RTN	SIG-RTN	SIG-RTN
47	TPS	TPS	TPS	TPS	TPS	TPS	TPS	TPS	TPS
48	STI	STI	STI	STI	STI	STI	STI	STI	STI
49	L HEGO GND	L HEGO GND	TOT	L HEGO GND	HEGO GND	L HEGO GND	TOT	L HEGO GND	L HEGO GND
50		MAF SIG	MAF SIG				MAF SIG		MAF SIG
51	TAB		SS1	TAB		TAB		TAB	TAB
52	INJ 8	INJ 8	SS2	INJ 8	INJ 8	INJ 8		INJ 8	INJ 8
53	SIL		TCC	SIL	SIL	SIL
54	A/C WOT off	A/C WOT off	A/C WOT off	A/C WOT off	A/C WOT off	A/C WOT off	A/C WOT off	A/C WOT off	A/C WOT off
55			E Fan
56	PIP	PIP	PIP	PIP	PIP	PIP	PIP	PIP	PIP
57	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR	V PWR
58	INJ 1	INJ 1	INJ 1	INJ 1	INJ 1	INJ 1	INJ 1	INJ 1	INJ 1
59	INJ 2	INJ 2	INJ 2	INJ 2	INJ 2	INJ 2	INJ 2	INJ 2	INJ 2
60	GND	GND	GND	GND	GND	GND	GND	GND	GND
Need Help with the Abbreviations, go here: Definitions Abbreviations
